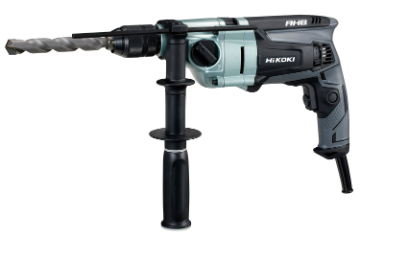

Hikoki Impact Drill 1120W with 13mm keyless chuck
Hikoki Impact Drill 1120W with 13mm keyless chuck
Product Code: HTC-DV22V
Hikoki is the new name under which all Hitachi Powertools are now branded.
The DV22V features internal double-insulation construction with a plastic stator holder and an aluminium die-cast body which firmly holds the armature shaft, this results in a higher durability.
FEATURES
-
- 3 Modes – Rotation only, rotation & hammering.
- Carbon brush rotation system extends carbon brush lifetime.
- Improved overload durability due to a more powerful motor.
- Slip clutch for less reaction force when an excessive load is suddenly applied.
- Slide type mode change lever.
- High/Low gear shift dial.
- Double-molded side handle for comfortable operation and a soft grip.
Drill Chuck
1.5 – 13mm (1/16 – 1/2")
Capacity - Concrete
Hi : 13mm (1/2"), Lo : 22mm (7/8")
Capacity - Steel
Hi : 8mm (5/16"), Lo : 16mm (5/8")
Capacity - Wood
Hi : 25mm (1"), Lo : 40mm (1 – 9/16")
Power Input
1,120W
No Load Speed
Hi : 0 – 3,000/min, Lo : 0 – 1,100/min
Full Load Impact Rate
Hi : 22,000/min, Lo : 8,100/min
Overall Length
363mm (14 – 9/32")
Weight
3.0 kg (6.6 lbs.)
Vibration Total Values (triax vector sum) (Impact drilling into concrete)
Vibration emission value : ah, ID = 19.5m/s2, Uncertainty K = 1.5 m/s2
Vibration Total Values (triax vector sum) (Drilling into metal)
Vibration emission value ah, D = 3.3m/s2 Uncertainty K = 1.5 m/s2
