Metabo SB 18 LT BL Cordless Hammer Drill 18V 2x4.0Ah Brushless
Metabo SB 18 LT BL Cordless Hammer Drill 18V 2x4.0Ah Brushless

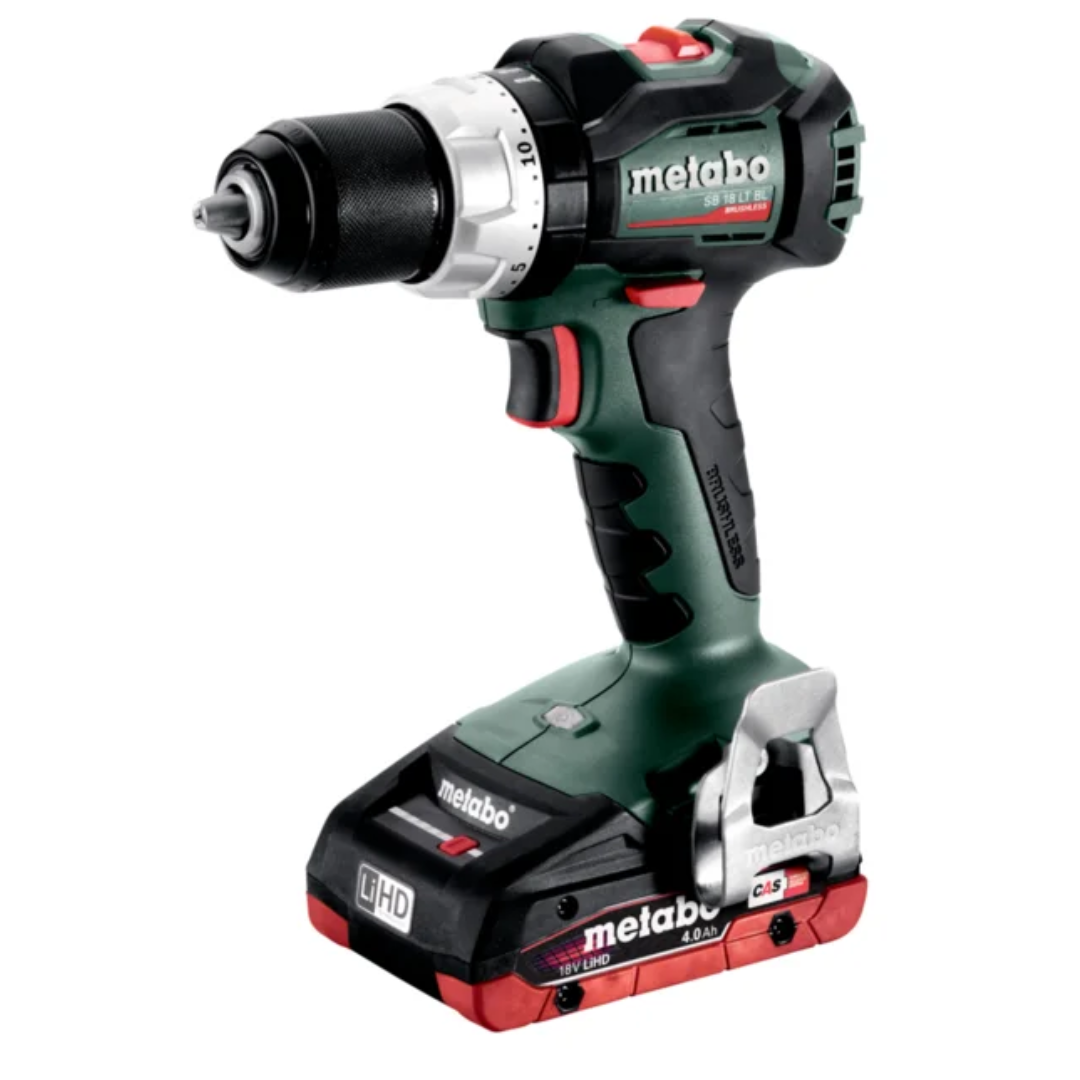

Metabo SB 18 LT BL Cordless Combi Drill
Brushless Cordless Combi Drill | 18V | 34/75Nm | 2x4.0Ah LiHD + ASC 72 Charger | Code: 602316800
Complete Kit - Ready to Use Out of the Box
This listing includes the SB 18 LT BL drill, 2x4.0Ah LiHD batteries, ASC 72 charger and metaBOX 145 carry case.
If you already own Metabo CAS 18V batteries, a machine-only option may be available - contact us for availability and pricing.
Product Overview
Metabo SB 18 LT BL is a brushless 18V cordless combi drill delivering 34Nm in soft materials and 75Nm in hard materials, with an adjustable torque limiter from 0.7-8Nm for screwdriving applications. High-performance impact mechanism for masonry and concrete drilling up to 13mm. Overload protection safeguards the brushless motor from overheating during sustained high-load drilling. Integrated LED work light with afterglow function illuminates the work area. Belt hook and bit case attachable on either side.
Supplied as a complete kit with 2x LiHD 18V/4.0Ah battery packs, ASC 72 "AIR COOLED" charger and metaBOX 145 carry case. Compatible with all Metabo CAS 18V battery packs and chargers - one battery family across all compatible 18V CAS cordless tools. Order No. 602316800.
Key Features
Brushless Motor with Overload Protection
Powerful brushless motor delivers maximum efficiency and extended battery pack runtime vs brushed motors. Overload protection automatically safeguards the motor from overheating during sustained high-load drilling and screwdriving.
34Nm Soft / 75Nm Hard Torque
High dual-mode torque output: 34Nm in soft materials for screwdriving and wood drilling, 75Nm in hard material mode for demanding drilling in steel and masonry. Covers the full range of combi drill applications.
Adjustable Torque Limiter - 0.7 to 8Nm
Adjustable torque clutch from 0.7-8Nm for precise screwdriving depth control - prevents overdriving screws into timber, plasterboard and composite materials. Essential for production screwdriving applications.
High-Performance Impact Mechanism
Combi drill with high-performance impact mechanism for drilling in masonry, brick and block up to 13mm - extending capability beyond standard cordless drills into light masonry work without needing a dedicated cordless hammer.
LED Work Light with Afterglow
Integrated LED work light illuminates the drilling area in low-light conditions. Afterglow function keeps the light on briefly after the trigger is released - maintaining visibility while repositioning or changing bits.
LiHD Battery Technology
2x4.0Ah LiHD battery packs deliver ultimate performance and extremely long runtime. LiHD technology maintains high performance under load and over the full battery discharge cycle vs standard Li-Ion packs.
Belt Hook and Bit Case
Handy belt hook and bit case attachable on either the right or left side of the drill - keeping the tool and bits accessible when working at height or on ladders where setting the tool down is not practical.
metaBOX 145 System Case
Supplied in metaBOX 145 - Metabo's stackable system carry case. Compatible with other metaBOX cases for organised, secure transport of multiple tools and accessories to site.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SB 18 LT BL |
| Order Number | 602316800 |
| EAN | 4007430334718 |
| Battery Voltage | 18V |
| Battery Type | LiHD |
| Battery Pack Capacity | 2 x 4.0Ah |
| Motor | Brushless |
| Maximum Torque - Soft | 34Nm |
| Maximum Torque - Hard | 75Nm |
| Adjustable Torque (Screwdriving) | 0.7 - 8Nm |
| No-Load Speed | 0 - 600 / 0 - 2,100 rpm |
| Maximum Impact Rate | 31,950 bpm |
| Chuck Capacity | 1.5 - 13mm keyless |
| Drill Capacity - Masonry | 13mm |
| Drill Capacity - Steel | 13mm |
| Drill Capacity - Soft Wood | 38mm |
| Battery Platform | Metabo CAS 18V |
| LED Work Light | Yes - with afterglow |
| Overload Protection | Yes |
| Weight (without battery) | 1.2 kg |
| Weight (with battery) | 1.8 kg |
| Carry Case | metaBOX 145 |
| Vibration - Metal Drilling | 2.9 m/s2 |
| Vibration - Concrete Impact Drilling | 17.3 m/s2 |
| Sound Pressure Level | 94 dB(A) |
| Sound Power Level (LwA) | 102 dB(A) |
| Warranty | 3 years XXL on registration |
Specifications sourced from Metabo official product page and verified data sources (Order No. 602316800). Verify against current Metabo documentation before ordering for OEM or tender supply. Accessories shown in product images not included unless listed in scope of delivery.
Scope of Delivery
Included in the box
- Metabo SB 18 LT BL cordless combi drill
- Keyless chuck
- Belt hook and bit case
- 2 x LiHD battery packs (18V / 4.0Ah)
- Charger ASC 72 "AIR COOLED"
- metaBOX 145 carry case
CAS Battery Platform
The Metabo CAS (Cordless Alliance System) is an 18V multi-tool battery platform - one battery pack and charger range compatible across all CAS-compatible Metabo cordless tools at 18V.
The 2x4.0Ah LiHD batteries supplied with this kit can be used across any compatible Metabo CAS 18V tool - reducing total battery inventory for workshops and fleet buyers running multiple cordless tools.
- Compatible with all Metabo CAS 18V tools and chargers
- LiHD technology for maximum performance and runtime
- One battery platform across angle grinders, saws, hammers and more
- Reduces spare battery and charger inventory on site
Cordless Alliance System - Metabo 18V battery platform
Typical Applications
Construction and Fitout
Drilling in timber framing, steel fixings and light masonry on construction and fitout sites. Screwdriving into timber, plasterboard and composites with torque limiter control.
Workshop and Fabrication
Drilling in steel, aluminium and hardwood in fabrication and assembly workshops. Screwdriving for assembly and fitment work where adjustable torque control is required.
Mining and Plant Maintenance
General cordless drilling and fastening for mine maintenance, plant maintenance and equipment installation where cable-free operation and CAS multi-tool battery compatibility are required.
Facilities Management
Multi-material drilling and screwdriving for facilities management teams across multiple sites. Lightweight at 1.8 kg with battery for sustained use and overhead applications.
Orbit Industrial Supplies is an authorised Metabo sales agent supplying power tools across the Western Cape, Northern Cape and Garden Route. Contact us for bulk pricing, fleet quotations and tender supply. Request a quote - Full Metabo range - Cordless tools - Batteries & Chargers
