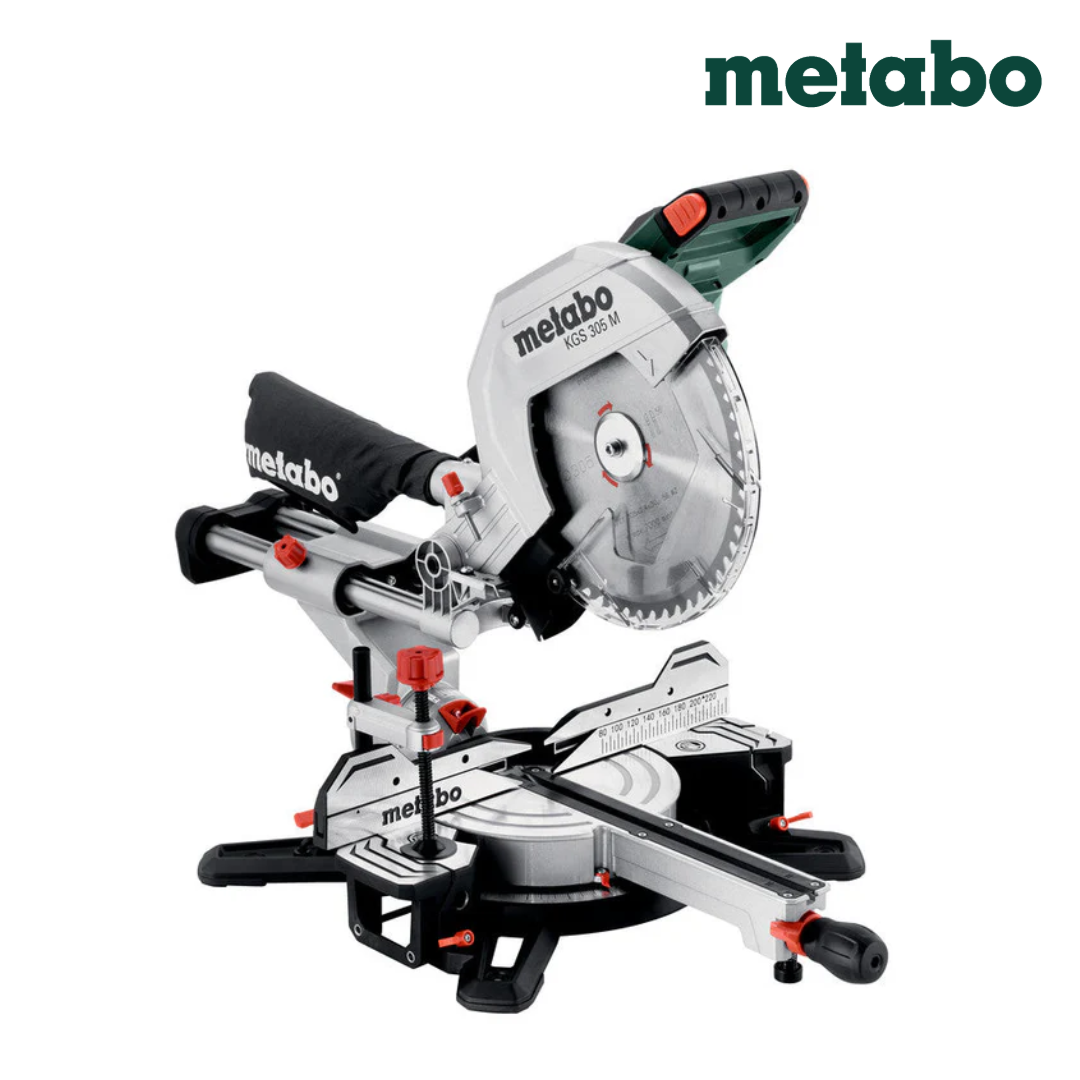

Metabo KGS 305 M Mitre Saw 1600W
Metabo KGS 305 M Mitre Saw 1600W
Metabo KGS 305 M Mitre Saw
Crosscut and Mitre Saw | 1600W | 305mm Blade | Sliding Function | Code: 613305000
Product Overview
Metabo KGS 305 M is the largest crosscut and mitre saw in the Metabo mobile M-class range - designed to be light, precise and user-friendly for on-site and workshop use. The 1600W universal motor (2000W S6 duty) drives a 305mm saw blade through a wide range of timber, panel and composite section sizes, with a maximum crosscut width of 305mm at 90 degrees and 215mm at 45 degrees.
Key features include the Precision Cut Line (PCL) shadow cut system via cleverly positioned LED, sliding function for extended crosscut capacity, bevel cutting on both sides to 47 degrees, soft start for extended motor and drive life, integrated dust extraction scoop, and extendable table width extensions for supporting long workpieces. Turntable with positive stops at common mitre angles for fast, repeatable setting.
Supplied in cardboard box. Order No. 613305000. EAN: 4061792218307. Accessories shown in product images are not included unless listed in the scope of delivery below.
Key Features
Precision Cut Line (PCL)
Precise shadow cutting line projected by a cleverly positioned LED - no laser re-adjustment required. Clear and accurate cut line positioning across the full width of the workpiece.
Sliding Function
Extended crosscut capacity via sliding arm - handles wider timber and panel sections than fixed-head mitre saws. Maximum crosscut width 305mm at 90 degrees, 215mm at 45 degrees.
Both-Side Bevel to 47 Degrees
Saw blade tilts on both sides up to 47 degrees for maximum flexibility in compound mitre cutting - eliminating the need to reposition the workpiece for left and right bevel cuts.
Powerful 1600W Motor with Soft Start
1600W rated input (2000W S6 duty) for maximum cutting performance on large cross-sections. Soft start for extended motor and drive life - critical for sustained production use.
Turntable with Angle Positive Stops
Fast, precise setting of common mitre angles using positive stops - reduces setup time between repeat cuts at standard angles on production joinery and site work.
Robust Die-Cast Aluminium Construction
Die-cast aluminium design for rigidity and durability under sustained production use and site conditions. Lightweight for an M-class saw - suitable for on-site deployment.
Integrated Dust Extraction
Effective dust extraction via integrated dust scoop. For best results connect to a compatible Metabo vacuum cleaner for on-tool dust management in enclosed or dust-controlled environments.
Extendable Table Width Extensions
Extendable supports for long workpieces. Also removable to allow extremely long work pieces to pass underneath - flexible setup for different timber lengths.
Technical Specifications
| Specification | Value |
|---|---|
| Model | KGS 305 M |
| Order Number | 613305000 |
| EAN | 4061792218307 |
| Rated Input Power S1 100% | 1600W |
| Rated Input Power S6 20% | 2000W |
| Blade Diameter | 305 x 30mm |
| Max Crosscut Width at 90 degrees | 305mm |
| Max Crosscut Width at 45 degrees | 215mm |
| Max Cutting Depth at 90 degrees | 110mm |
| Max Cutting Depth at 45 degrees | 67mm |
| Bevel Range | Both sides to 47 degrees |
| Sliding Function | Yes |
| Precision Cut Line (PCL) | Yes - LED shadow cut line |
| Soft Start | Yes |
| Dust Extraction | Integrated dust scoop |
| Depth Guide | Yes - for groove cutting |
| Quick-Action Clamp | Yes - top or front fixing |
| Packaging | Cardboard box |
| Warranty | 3 years XXL on registration |
Specifications sourced from Metabo Product Data Sheet and official product listing (Order No. 613305000). Verify against current Metabo documentation before ordering for OEM or tender supply. Accessories shown in product images are not included unless listed in scope of delivery.
Scope of Delivery
Metabo KGS 305 M mitre saw body, saw blade, quick-action clamp, table width extensions and cardboard box. Refer to the official Metabo scope of delivery listing (Order No. 613305000) for the full confirmed accessory list. Stand, additional blades and vacuum accessories are not included.
Typical Applications
Joinery and Woodworking
Precision crosscutting and compound mitring of large-section timber, beams, engineered wood, moulding and skirting in joinery workshops and production environments.
Construction and Fitout
On-site crosscutting of timber framing, door and window lining, structural sections and finish carpentry during building construction and fitout projects.
Shopfitting and Interior
Accurate mitring and crosscutting of large-profile moulding, cladding, skirting and ceiling sections for shopfitting, cabinet installation and high-end interior finishing work.
Facilities and Plant Maintenance
General timber cutting for structural and finishing repair work across facilities management, property maintenance and industrial plant operations.
