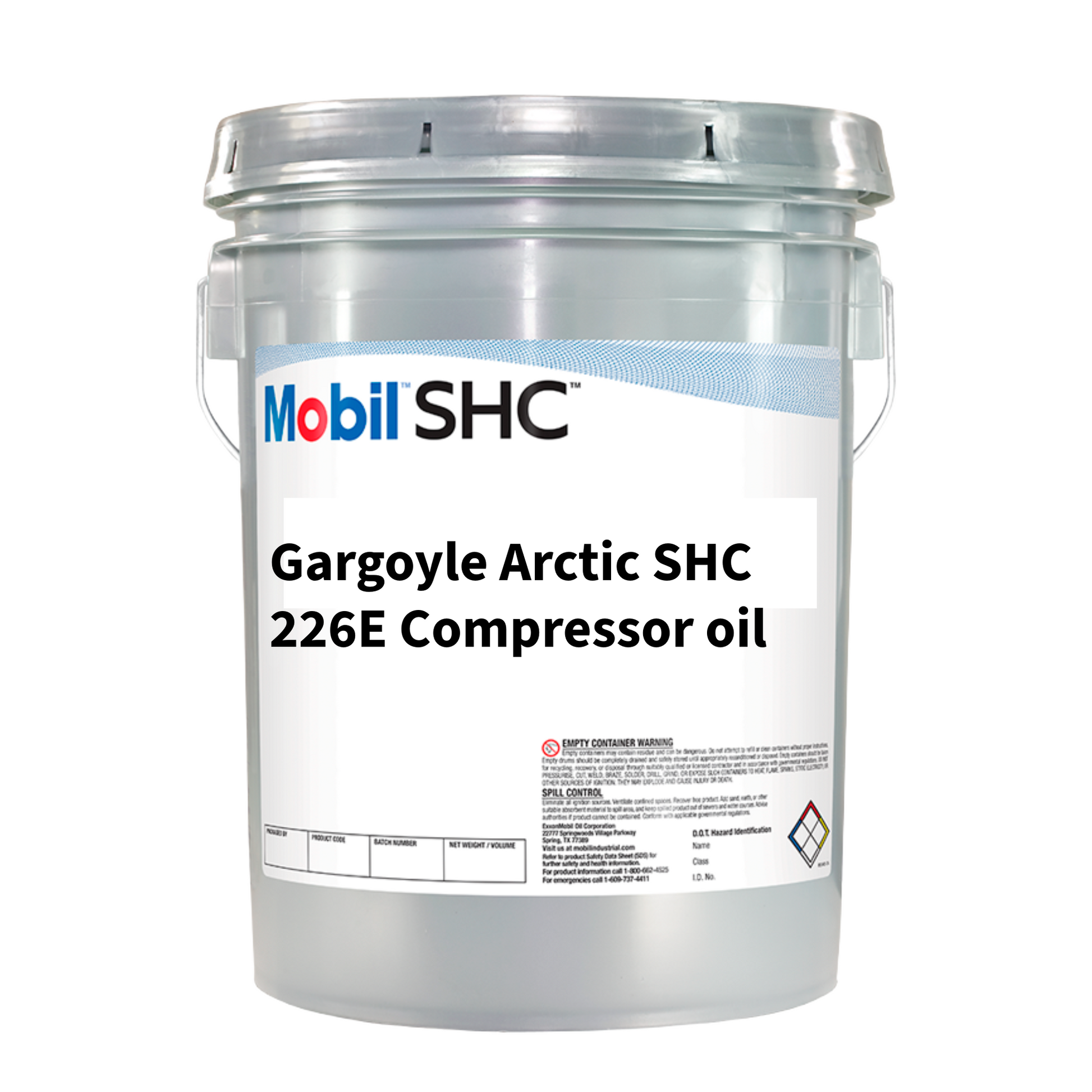

Mobil Gargoyle™ Arctic SHC™ 226- Full-synthetic refrigeration compressor Oil (20LT)

Mobil Gargoyle™ Arctic SHC 226 Oil - ISO 68- Premium Refrigeration Compressor Lubricant

>>Download full Datasheet<<

Typical Applications:

• Commercial, industrial, heat pump applications and marine refrigeration systems
• Commercial, industrial and residential heat pump applications
• Recommended for both reciprocating and rotary compressor designs
• Recommended for use with the following refrigerants: Ammonia and Carbon Dioxide

The Mobil Gargoyle Arctic SHC™ 200 Series are fully synthetic, superior performance lubricants, specifically designed for use in refrigeration compressors and heat pumps. They are formulated from wax-free, synthesised hydrocarbon polyalphaolefin (PAO) fluids, which have outstanding resistance to thermal/oxidative degradation. With their naturally high shear stable viscosity indexes and low temperature fluidity, they are able to perform in severe service conditions that are beyond the capabilities of many conventional mineral oils.

Their solubility and miscibility with commonly used refrigerants is low, resulting in higher film thickness in the presence of refrigerants under pressure. This can help to reduce shaft seal leakage. Their stability and low volatility characteristics reduces the "light end stripping" which can occur with conventional mineral oils.

Mobil Gargoyle Arctic SHC 200 Series lubricants may help reduce frictional losses and
improve machine operating efficiencies.

Mobil Gargoyle Arctic SHC 200 Series lubricants are recommended for the lubrication of refrigeration compressors operating at very high temperatures, and for systems with very low evaporator temperatures. They are suitable for compressor systems using refrigerants such as ammonia and carbon dioxide. Their low miscibility with carbon dioxide makes them a suitable choice for screw compressors using carbon dioxide. They are compatible with most common refrigerants, except sulphur dioxide, and have been particularly successful in systems using ammonia as the refrigerant.

Mobil Gargoyle Arctic SHC 200 Series are fully miscible with most conventional mineral refrigeration oils. Any mixture with mineral oils may detract from the outstanding performance properties of the Mobil synthetic product.

By its nature, the PAO base stock used in Mobil Gargoyle Arctic SHC 200 Series oils provides exceptional thermal/oxidative resistance critical for high
temperature applications. The narrow molecular weight distribution of the PAO base stocks also minimizes volatility and can help to reduce oil carryover. Mobil
Gargoyle Arctic SHC 200 Series oils offer the following features and potential benefits:

Features and Benefits:

• High oil film thickness in the presence of refrigerant: Improved compressor protection for extended compressor life as well as better shaft sealing, reduced bearing fatigue and less unscheduled downtime
• Excellent Chemical and Thermal Stability: Long oil life and reduced frequency of drain intervals and routine maintenance. Reduced lacquer and deposit formation
• High Viscosity Index and wax-free: Excellent low temperature fluidity, no waxy deposits and improved evaporator efficiency.
• Seal compatibility: Long seal life, reduced shaft seal leakage
• Low volatility: Viscosity remains consistent with reduced oil consumption
• Low traction coefficient: Potential for improved system efficiency and reduced power consumption

Application Considerations:

While Mobil Gargoyle Arctic SHC 200 Series are compatible with mineral oil products, a mixture will detract from their performance. Systems should be thoroughly flushed and cleaned when replacing a mineral product with a Mobil Gargoyle Arctic SHC 200 Series product. In the case of R22 refrigerants, guidance from the supplier of the refrigeration unit must always be sought to ensure compressor operation is suitable for efficient
separation of the oil and refrigerant.Typical applications include:

• Large industrial reciprocating and rotary refrigeration compressors.
• Industrial applications such as food freezing and cold storage plants.
• Marine refrigeration applications.
• Used primarily with ammonia refrigerant, but also with selected halocarbons.

For reliable performance and long service life in your refrigeration systems, choose Mobil Gargoyle Arctic SHC Oil. Get yours today from Orbit Industrial!
